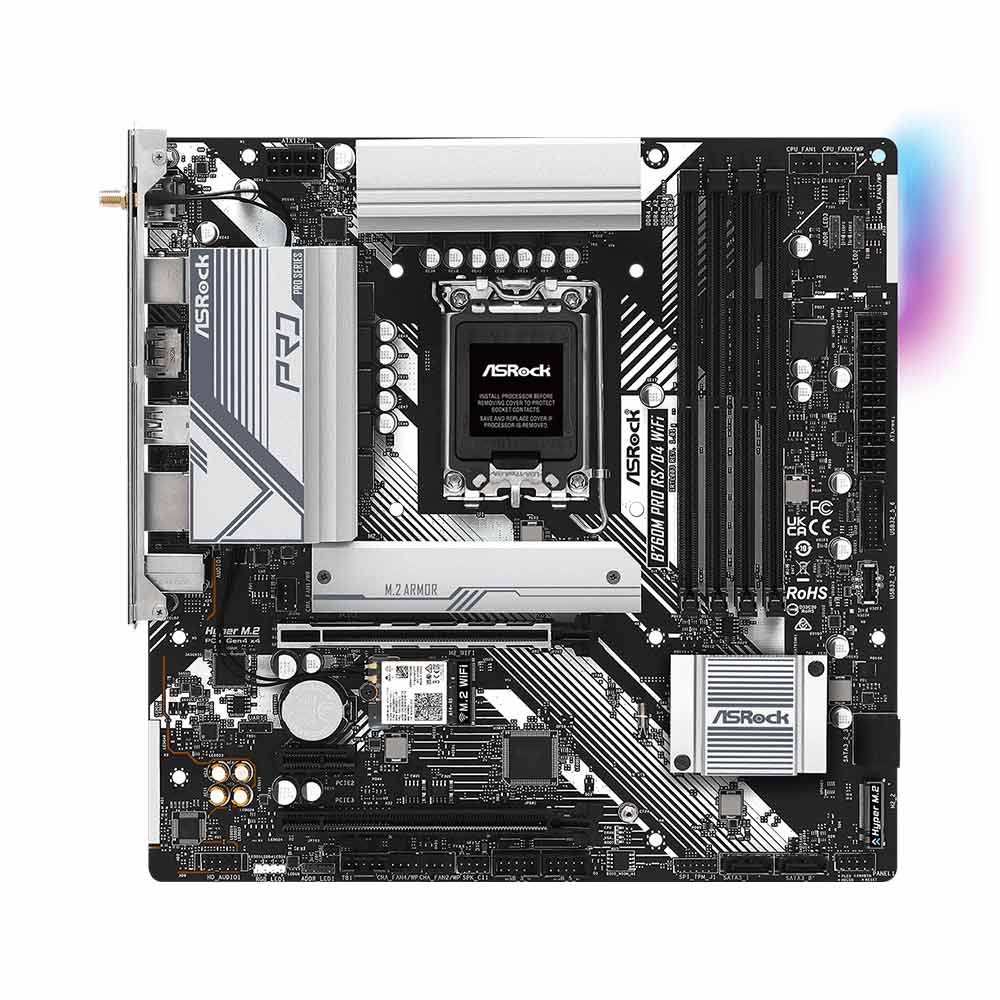

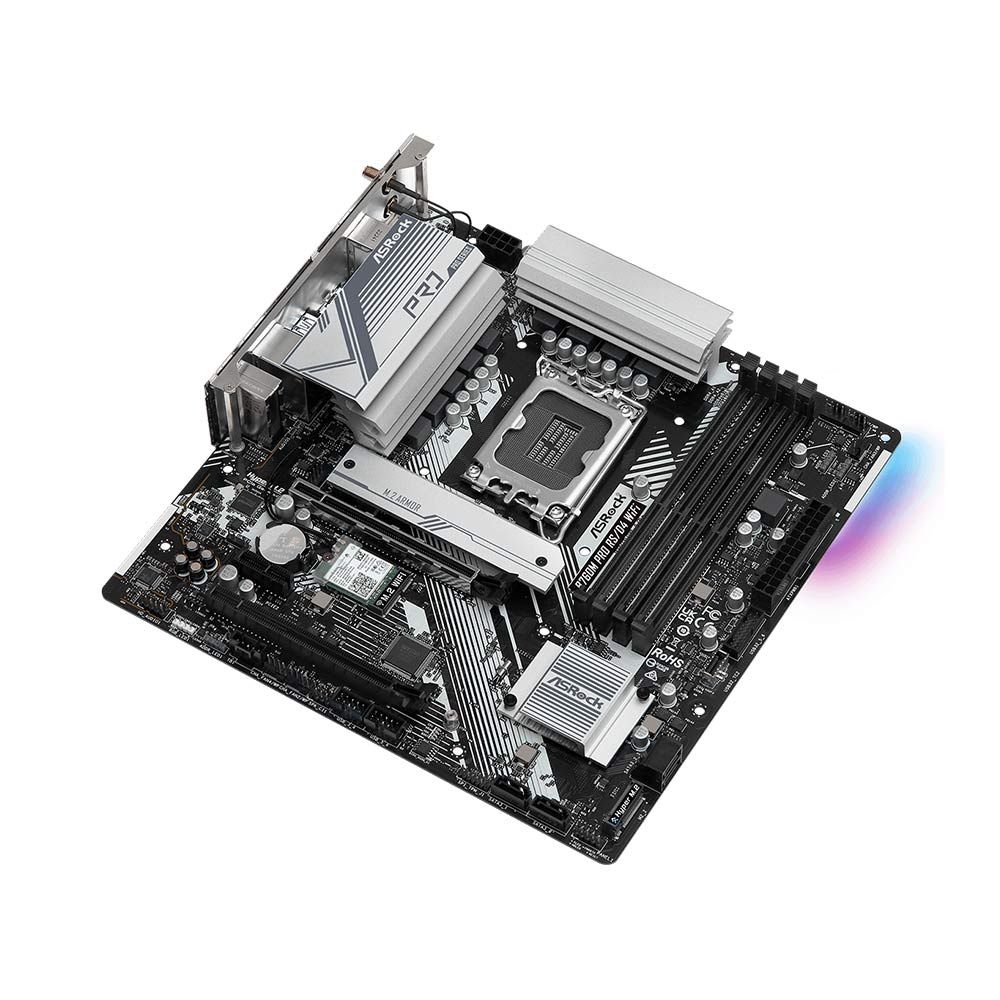

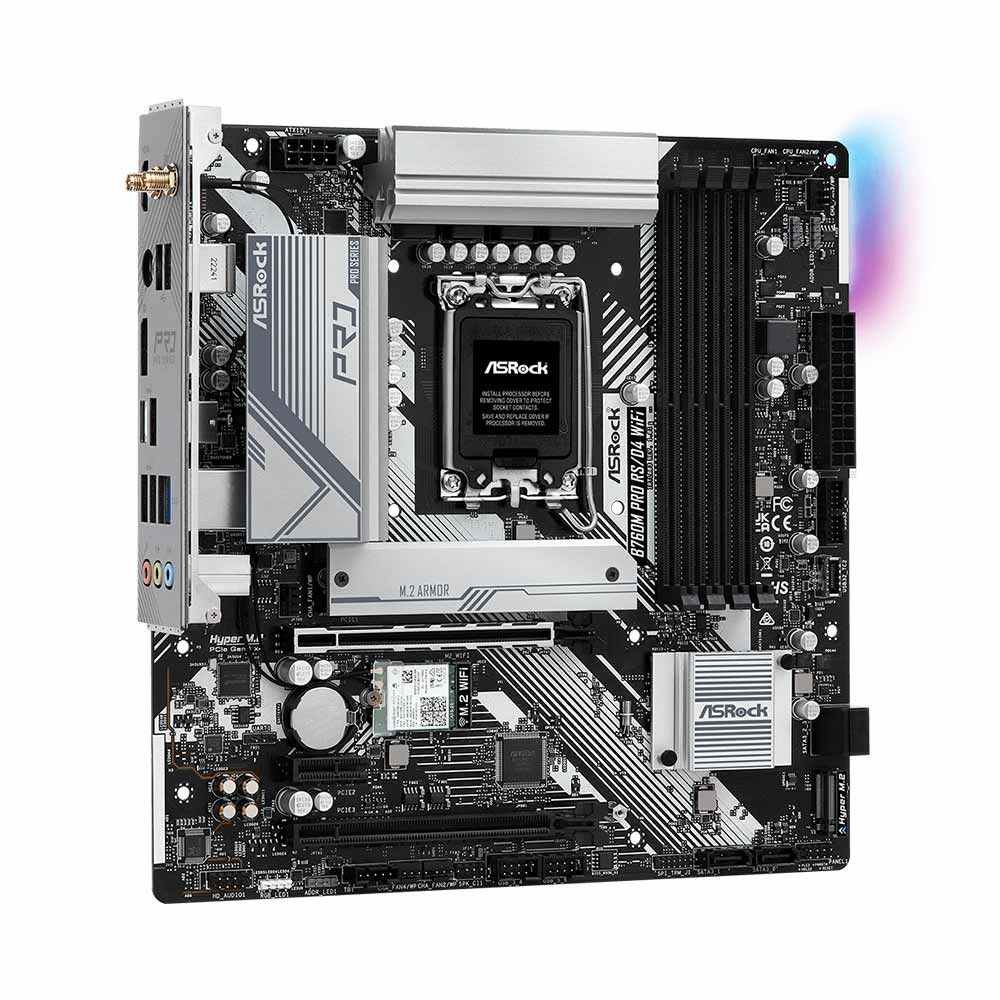

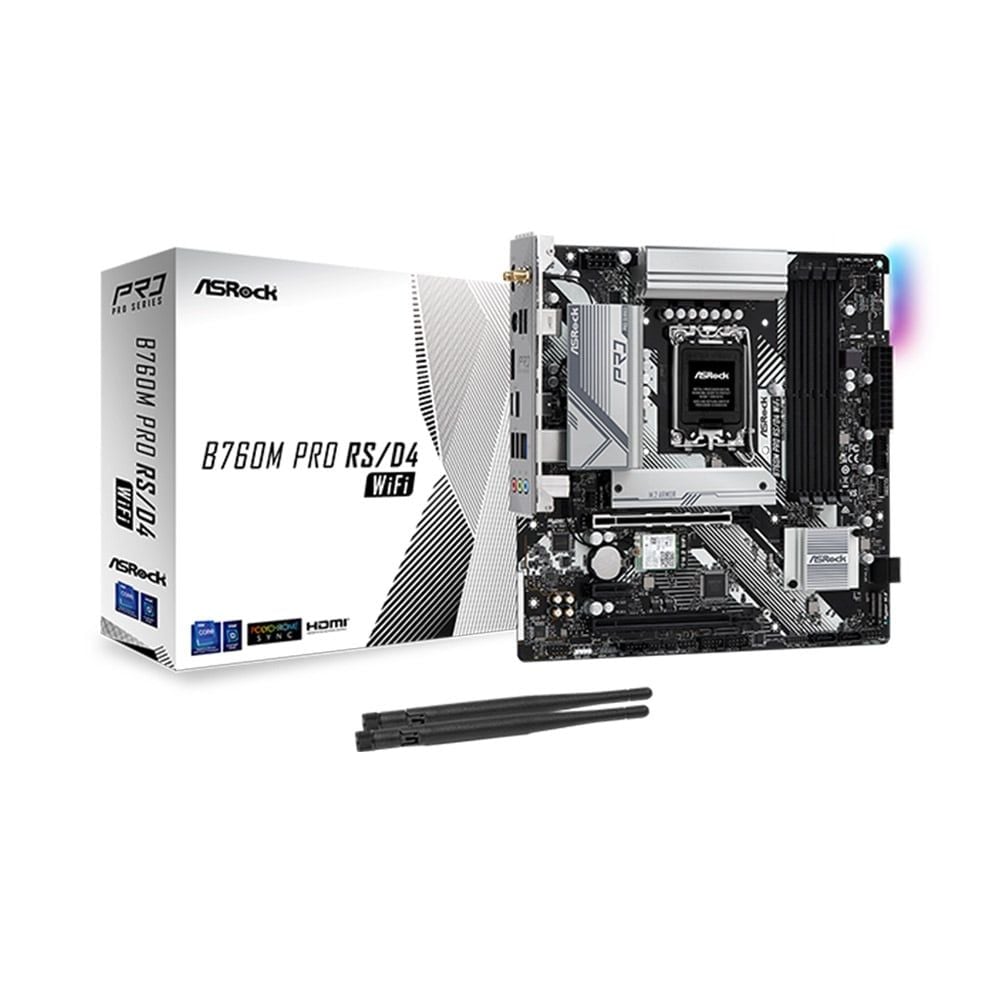

Mainboard Asrock B760M Pro RS DDR4 Wifi

• Intel Core 12th/13th
• Socket LGA1700

4 x DDR4 non-ECC up to 5333+(OC) MHz (Maximum 128GB)

1 x PCIe 4.0 x16 (PCIE1)

1 x PCIe 4.0 x16 (PCIE3)

1 x PCIe 4.0 x1 (PCIE2)

1 x M.2 2230 WiFi

1 x Hyper M.2 2242/ 2260/ 2280 PCIe Gen4 x4

1 x Hyper M.2 2280 PCIe Gen4 x4

4 x SATA 3 6 Gb/s

Support Raid 0, 1, 5, 10.

• LAN: Gigabit LAN 10/100/1000 Mb/s
• Wireless: 802.11ax Wi-Fi 6E AX210

Realtek ALC897 Audio Codec

Nahimic Audio

-Fan and Cooling

1 x CPU Fan Connector (4-pin)

1 x CPU/Water Pump Fan Connector (4-pin)

4 x Chassis/Water Pump Fan Connectors (4-pin)

-Power

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector

-Storage

2 x M.2

4 x SATA 3 6Gbps

-USB

2 x USB 2.0 Headers

1 x USB 3.2 Gen1 Headers

-Miscellaneous

1 x SPI TPM Header

1 x Chassis Intrusion and Speaker Header

1 x RGB LED Heade

3 x Addressable LED Headers

1 x Front Panel Audio Connector

1 x Thunderbolt™ AIC Connector (5-pin)

1 x Front Panel Type C USB 3.2 Gen1 Header

2 x Antenna Mounting Points

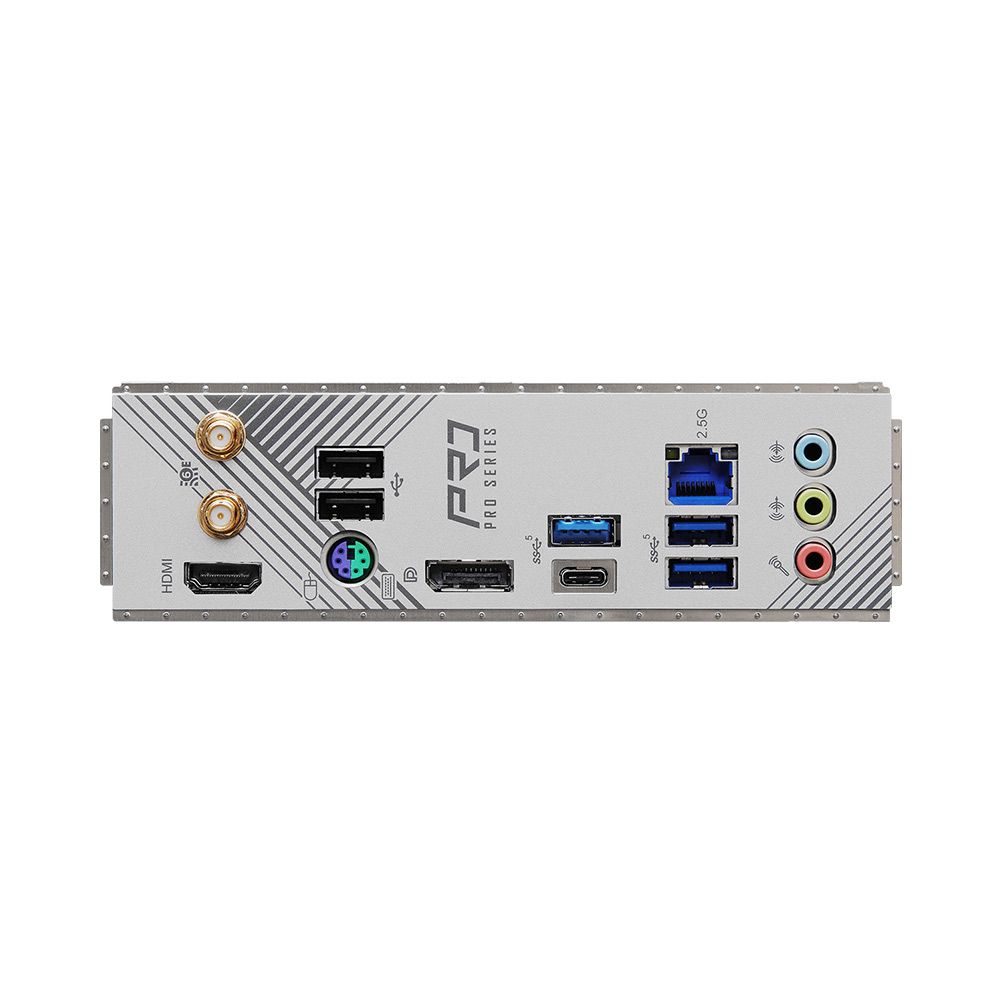

1 x PS/2 Mouse/Keyboard Port

1 x HDMI Port

1 x DisplayPort 1.4

1 x USB 3.2 Gen1 Type-C

3 x USB 3.2 Gen1 Type-A

2 x USB 2.0 Ports

1 x RJ-45

HD Audio Jacks
